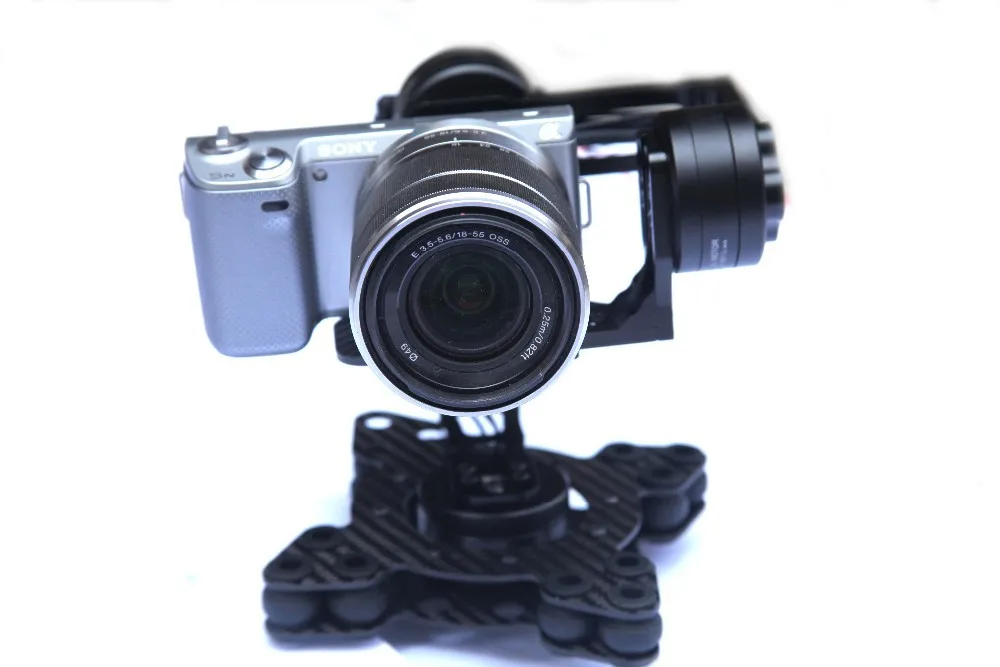

RCMOY 3Axis Brushless Gimbal 3x Motors & 32Bit Control Board for Micro DSLR Camera Sony NEX5/6/7 FPV Photography (not assembled)

RCMOY 3Axis Brushless Gimbal 3x Motors & 32Bit Control Board for Micro DSLR Camera Sony NEX5/6/7 FPV Photography (not assembled)

0 (0 reviews)
SKU: 2901 (Added on 06/20/2017)
Price:
Stock: 20
Weight: 800 g
Color:


Brushless gimbal forSony NEX5/6/7

3 Axis Brushless Gimbal w/ Three Motors & 32Bit Control Board for Micro DSLR Camera Sony NEX5/6/7 FPV Photography

Brushless gimbal forSony NEX5/6/7,etc. This is the Ready To Go kit.

Description
- Specially designed for Sony NEX5/6/7 micro DSLR
- The frame adopts high qualtiy CNC aerial aluminum material, carbon fiber board of high strength, light weight and high strength
- Full adjustable design, keep perfect balance
- With three ipower customized brushless motor
- BaseCam SimpleBGC (AlexMos) Controller

Features:
- Aluminum alloy material, single arm frame, portable and stable
- Brushless motor directly drive design, quick response
- Has camera gravity center adjustment, suitable for all camera lens
- Automatic stabilization technology

Parameters:
- Support sensitivity parameters adjustment and software 3D display
- Support joystick rate mode and position mode
- Support receiver: normal receiver, PPM receiver, DSM2/ DSMJ/ DSMX receiver
- Support remote control device: PPM/ PCM/ 2.3G
- Working voltage: DC 7.4V-14.8V
- Working current: 200mA-2
- Working temp: -15℃~65℃
- Processor: MEGA328P processor
- Sensor: MPU6050 3 axis gyroscope, acceleraotor meter
- Max angular speed rate: 2000degree/ SEC
- Max accelerating speed: 16g
- Control frequency: 1600Hz
- Motor driving frequency: 8/32KHz
- Control precision: 0.1degree
- Control angle range: -45---45degree (roll), -90---90degree(pitch)
- Software: ALEXMOS official software, can upgrade the newest firmware at any time

Support camera:
- SONY NEX-5N, 5R, 5T 6 7

Package includes:
- Gimbal x 1
- Motors x 3
- 32 Bit control board x 1
Note:  Not include camera, not assembled, needs  own installation.




AG0A3138
AG0A3140
AG0A3144
AG0A3149

2

IMG_23620

IMG_23630

IMG_23700









Document files list

  1. 1 : SimpleBGC_manual_2_4_eng.pdf
